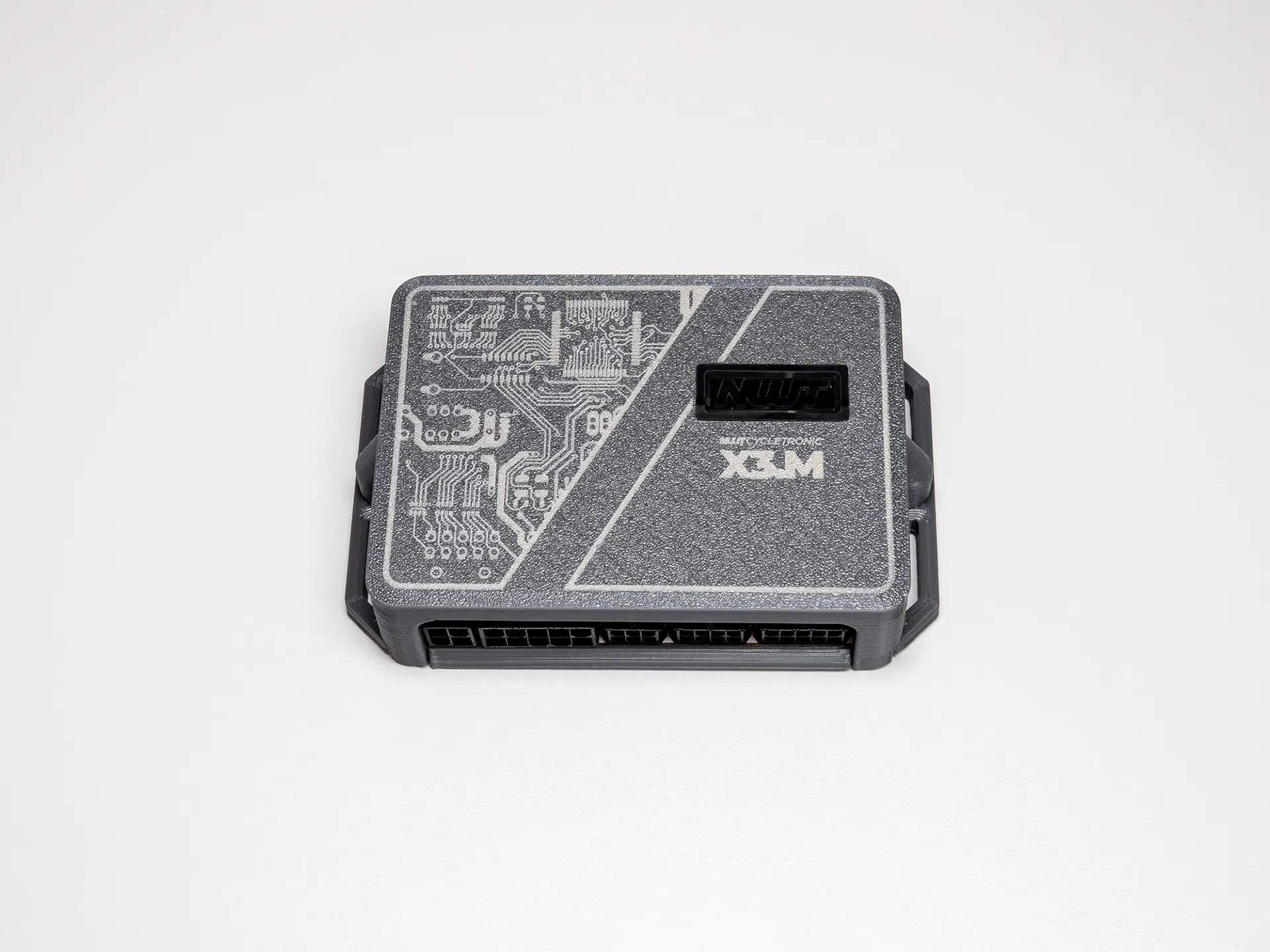

X3.M
CONTROL HUB

Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation

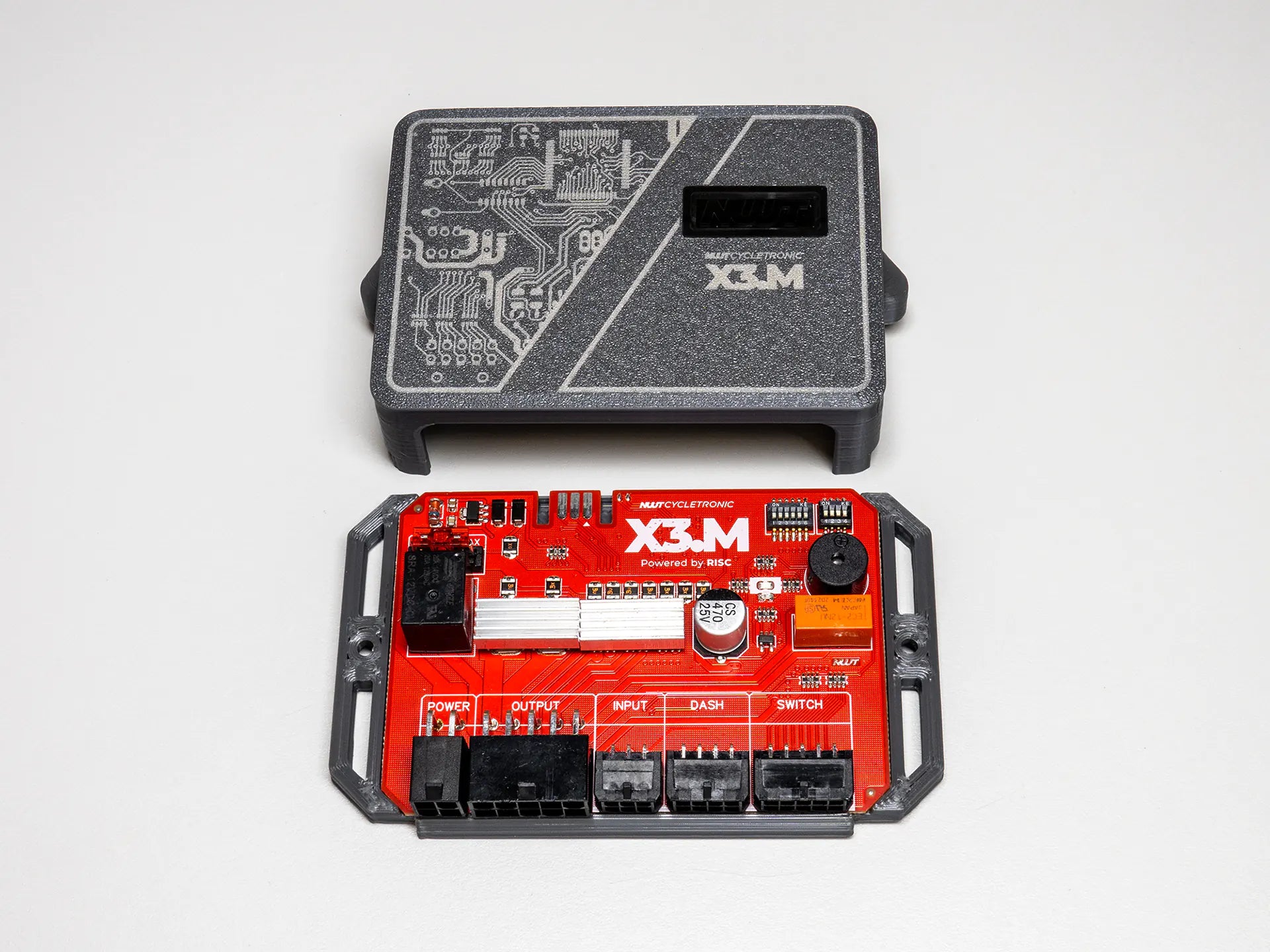

4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimized for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Charging system monitoring with fault audible notification
Enhanced engine power protection with quick blow fuse

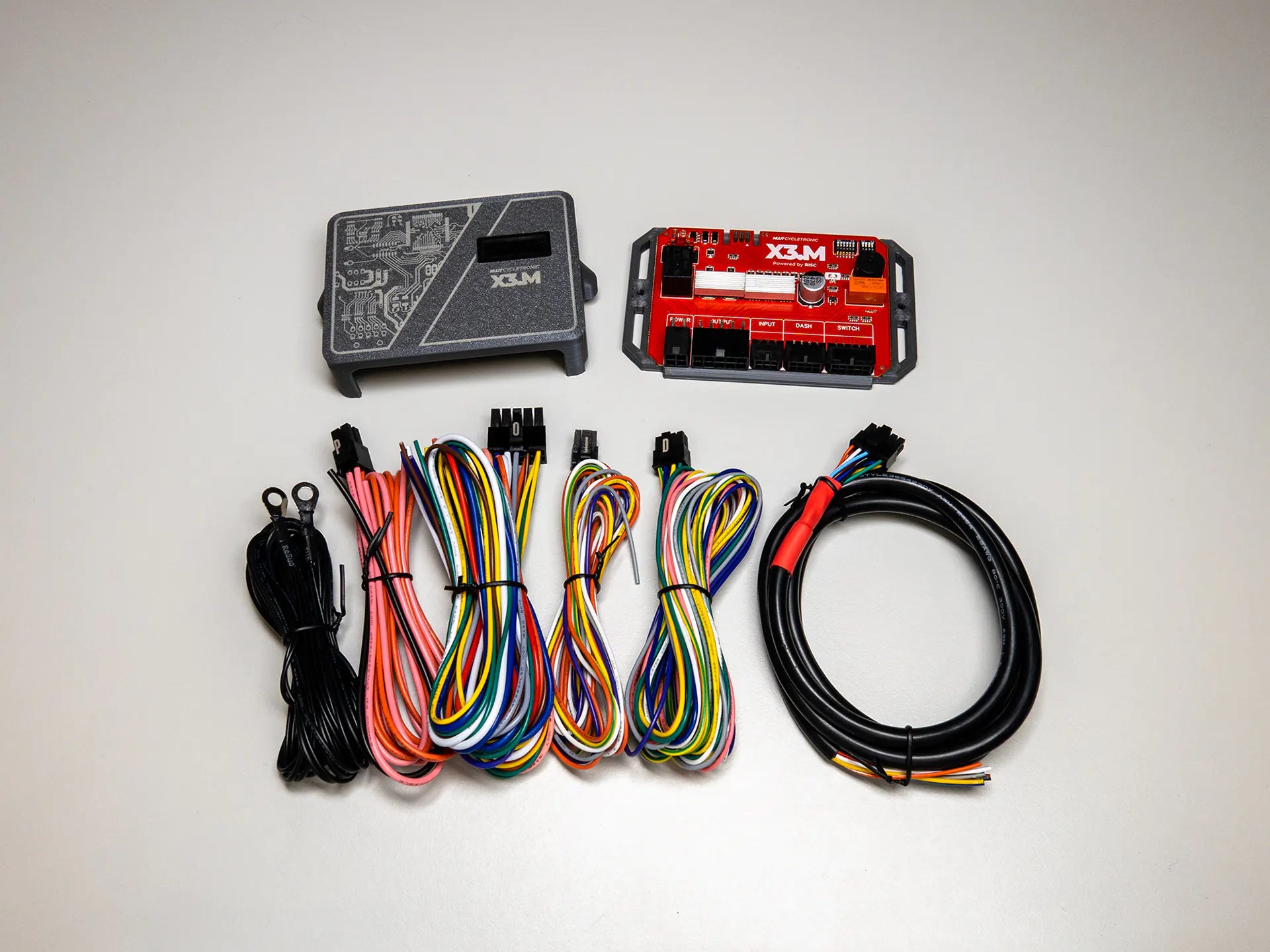

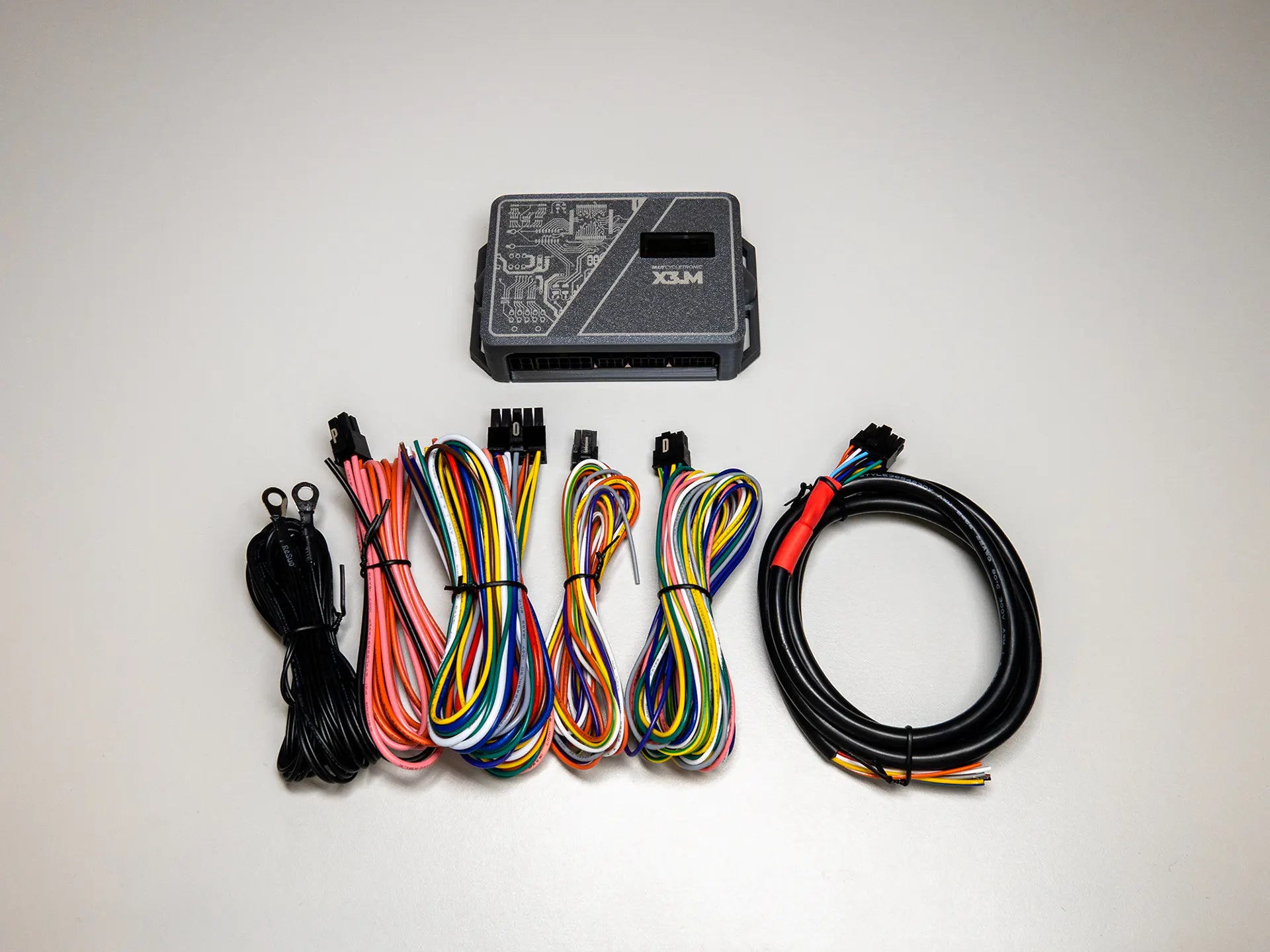

Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Automatic brake light HOLD (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
Signal light time out auto off
DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
"PARK" position light feature (Hazard lights)
Master light control
Sensor inputs
Auxiliary sensor input/output
Dash gauge outputs (Enhanced)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Single wire PWM taillight output
Sequential/self flashing signal light capable
Plug&Go handlebar switch set (Harness only)
DIY fully configurable handlbar switch input
Handlebar switch size (DIY)
1 year replacement warranty & tech service
